What is tread and riser?
What is the riser on a stair?
Stair Riser: Risers are the boards that form the vertical face of each step, creating the “toe kick” area between the stair treads.
What is the ideal tread to riser ratio?
Over the years, carpenters have determined that tread width times riser height should equal somewhere between 72 to 75 inches. On a main stair, the maximum rise should be no more than 8 1/4 inches and the minimum run should be no less than 9 inches.Sep 4, 1993
What tread means?
1a : to step or walk on or over. b : to walk or proceed along : follow treading a fine line between tradition and innovation. 2a : to form by treading : beat tread a path. b : to execute by stepping or dancing tread a measure. 3a : to beat or press with the feet : trample.7 days ago

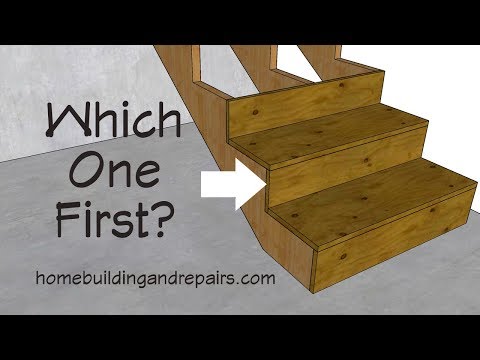

What goes first the tread or the riser?
When installing stairs, install the riser first, and then the tread. Start at the bottom of the stairs and work your way up, alternating risers and treads. The back of each tread will sit flush against the riser. Treads and risers fasten with construction adhesive to the subfloor.
How many steps is 11 feet?
How many stairs in 11 feet hight:– As per thumb rule and various building code or IRC, assume standard design, for 11 feet height of ceiling or floor, you will need approximately 19 stairs or steps or riser, 19 number of tread or going and on average 13 feet of stringer to go up.
What is the 18 rule for a staircase?
Rule one says that rise plus run (r+R) should equal 18 inches. Why? That's what most people find to be a comfortable stride on most stairs. You can cheat a bit up or down, but below 17” and more than 19” will result in steps that require strides either too big or too small for most people.
How high are risers on steps?
Stair riser heights shall be 7 inches (178 mm) maximum and 4 inches (102 mm) minimum. The riser height shall be measured vertically between the leading edges of adjacent treads.
Do stairs need risers?
Solid risers are not required for stairways that are not required to comply with Section 1009.3, provided that the opening between treads does not permit the passage of a sphere with a diameter of 4 inches (102 mm).
What is the difference between a riser and a step?
As nouns the difference between step and riser
is that step is an advance or movement made from one foot to the other; a pace while riser is someone or something which rises.
What is the difference between rise and riser?
As nouns the difference between rise and riser
is that rise is the process of or an action or instance of moving upwards or becoming greater while riser is someone or something which rises.
Is an 8 inch step too high?
Building codes in many areas define maximum step height and minimum tread width, but in areas where it is not defined, Council of American Building Officials and International Code Council both recommend the rise to be no more than 7.75 inches and runs to be no less than 10 inches.Aug 27, 2021
What is the standard for stair treads and risers?
Stair riser heights shall be 7 inches (178 mm) maximum and 4 inches (102 mm) minimum. Stair tread depths shall be 11 inches (279 mm) minimum. The riser height shall be measured vertically between the leading edges of adjacent treads.May 24, 2012
What is the most comfortable step height?
The general rule (in the US) is 7-11 (a 7 inch rise and 11 inch run) (17.78cm-27.94cm). More exactly, no more than 7 3/4 inches (19.7cm) for the riser (vertical) and a minimum of 10 inches (25.4cm) for the tread (horizontal or step). You can find some more information here as well on other stair-related dimensions.
What goes first the tread or the riser?
- When installing stairs, install the riser first, and then the tread. Start at the bottom of the stairs and work your way up, alternating risers and treads. The back of each tread will sit flush against the riser. Treads and risers fasten with construction adhesive to the subfloor.
What goes on first stair tread or riser?
- The riser goes behind the lower tread and is nailed to it and fits under the upper tread supporting it as well. The stair risers are nailed onto the stair stringer first, then the treads nailed on after. Start at the bottom riser, narrower than others, then put on the next riser up.
How to calculate stair treads and risers?
- Stair Tread & Riser Calculations Riser and Tread Dimensions. The dimensions of the tread and riser determine the angle of a staircase. ... Interior Stairs Tread and Riser Ratio. ... Exterior Stairs Tread and Riser Ratio. ... Tread and Riser Calculations. ...
How to install a stair tread?
- Start at the bottom and work your way up the steps so that you can add extra screws into treads from the back of the riser above it.
- Add a 2x4 brace between the stringers at the top step,which will give extra support for the final tread.
- Fill in all of the screw holes left in the treads with some matching wood putty.
- Staple down 15-lb. roofing felt to the area. Install the nosing border (image 1) that's cut at a 45-degree angle by pre-drilling the wood,and attach with 2-1/4" ...
- Pre-drill holes in the post and holes for toggle bolts in the wall. Insert screws for toggle bolts and attach toggles on the other side.
- Notch the newel post's bottom to fit snugly around the step and secure it with lag bolts. Attach the bottom newel post goes in the same way.
- To mark the stair railing,hold it in place,resting along the stairs,and mark it for the angled cut.
- Pre-drill the landing and treads for the balusters,using a special stair bit that drills the hole and then creates a thread to accept the baluster bolts.
- Attach the rail fasteners into the newel posts. Loosen the newel post and set the railing in place first by guiding it onto the rail fastener,and then ...
- To complete the project,install the new base moldings all around the stairs and landing.
What is the difference between tread and riser?What is the difference between tread and riser?
Tread and Riser RISER: It is a vertical portion of a step providing support to the tread. TREAD: It is a top portion or surface of step on which foot of ascender or descender comes when going up or download by stair.
What is a stair riser nosing?What is a stair riser nosing?
The nosing is the projecting edge of a tread. Risers can be too low and treads too long for comfortable use of the stairs; a riser that's 7 inches is considered an ideal height with a 10-inch wide tread.
What is meant by the term'rise/riser'?What is meant by the term'rise/riser'?
Rise/Riser: The rise, or height of a step is measured from the top of one tread to the top of the next tread. It is not the physical height of the riser because this excludes the thickness of the tread.
How do you calculate riser and tread on stairs?How do you calculate riser and tread on stairs?
As general rules of thumb for achieving comfortable relationships between riser and tread dimensions, the following formulas can be used: . Tread (inches) + 2x Riser (inches) = 24”-25” (26” for exterior stairs) Riser (inches) x Tread (inches) = 72”-75”.
