What is an F plug used for?
What is F type socket?

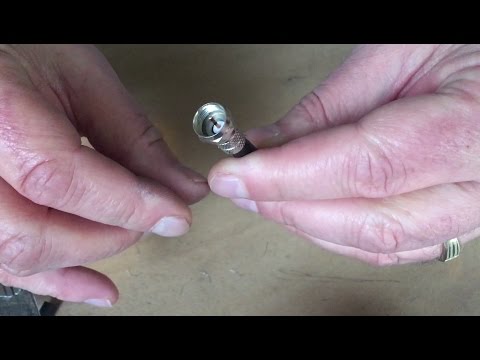

The F connector (also F-type connector) is a coaxial RF connector commonly used for "over the air" terrestrial television, cable television and universally for satellite television and cable modems, usually with RG-6/U cable or with RG-59/U cable.
Why is it called an F connector?
Unlike other connectors like the RCA or BNC, the F connector is not named for its creator, nor is it named for its size or construction like the 1/8″ TRRS (commonly called the headphone plug.) It may have been named because it originally carried UHF or VHF signals to a TV.May 31, 2019
What does a Type F plug look like?
The Type F plug and outlet is much like the Type E, except it has two earth clips on the side rather than a female earth contact. It is commonly known as a “Schuko” plug, from the invented German word “Schukostecker” which means “protective contact plug.
What is the difference between BNC and F connector?
BNC connectors are bayonet type connectors, commonly used in CCTV systems. They are the most suitable connector for use with RG59/U cable. ... F-Type connectors are used for CATV, SATV and Digital TV in conjunction with either RG6 or RG11 cables.
Are plug type C and F the same?
Plug type C is the plug which has two round pins and plug type F is the plug which has two round pins with two earth clips on the side.
Will Type F plug work in type C socket?
The Type C electrical plug (or Europlug) is a two-wire plug that has two round pins. ... They are being replaced by E, F, J, K or N sockets which work perfectly with Type C plugs.
Does Type F fit in Type C?
The plug has two 4.8 mm round pins, measuring 19 mm in length on centres spaced 19 mm apart. ... The original type F plug, which does not have this female contact, is now obsolete, but a rewireable version may still be available at some DIY shops. A type C plug fits perfectly into a type F socket.
Are there different size F connectors?
The F connectors are so easy and quick to installer. ... There are two main types: 7 mm (6.8mm) is the most common and most used in coaxial cables, and connector 5mm that it is used in a thin coaxial cable typically used in satellite systems.
What is better RG6 or RG59?
RG6 cables can carry signals at a longer distance and keep better signal quality than RG59 cables. Therefore, RG6 cables are usually used for high-frequency applications like TV connection, while RG59 cables is more suitable for low-frequency and short-distance transmission.Oct 26, 2020
Related questions
Related
What is the most common use for F type connectors?
F-type connectors are the type of connector seen on the backs of televisions. These connectors are most commonly used on RG59, RG6, and RG11 cable, although there are other options. They can be used for antenna, cable, and satellite television as well as cable modems.Oct 11, 2018
Related
Is SMA connector same as F connector?
The SMA connector(SubMiniature version A) is a 50 ohm coaxial connector. It is visually similar to an F type connector that is commonly used for audio/video communication, but has different dimensions, mechanical properties and is used for different applications such as RF communications up to 18 GHz.Aug 30, 2017
