What is air vent valve?

What is air vent valve?

An air vent valve is a safety device that discharges air at the water supply piping in order to avoid air related problems in the water piping systems.

What is an air vent used for?

Air vents are access points to the ducts running through your home which allow the free flow of air to and from your HVAC system. Supply vents blow conditioned air from the HVAC into the rooms, and return air vents pull the air out of the rooms and back into the cooling system.4 mei 2019

What is the function of air release valve?

Air Release Valves are used to automatically vent the air that can become trapped in any pipeline conveying fluid. They should be placed at strategic high points along the pipeline, where trapped air can accumulate.

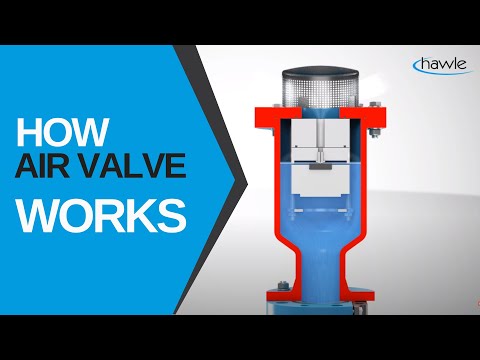

How does an automatic air valve work?

When liquid is pumped through the system at startup, the initial air inside the piping is pushed into the air vent by the pressure of the flow. ... If air enters the air vent while it is closed, the liquid level drops and the float lowers, allowing the valve to open and discharge air once more.

How do I know if my air vent is working?

When open, air flows freely; when closed (or almost shut), there's little or no airflow. Have you ever wondered if an AC vent should be open or closed? If you are using your heating and cooling system, they should always stay open!2 feb. 2021

How do you use an air admittance valve?

Operation is simple: when a fixture drains and creates negative air pressure in the correlated drain line, the valve is opened, drawing air back into the pipe. Once the air pressure has been equalized, the valve securely closes (preventing the escape of gas) until the pressure drops again.

What is the difference between a duct and a vent?

Laypeople sometimes refer to it as "vent cleaning," though this term is a little reductive: air ducts are the vast system of (usually) metal tubes that run from your furnace throughout your home, distributing heated or cooled air; vents are simply the point where the ducts open into the house.15 jan. 2018

What is vent valve in boiler?

Air vent valve is a boiler mounting fitted in the headers, boiler drum etc, to avoid imploding of boiler tubes when it is depressurized or when initially raising the steam pressure. It also helps in oxygen scavenging ie. removing air trapped in water during intial firing upto 2 bar pressure.

What is the difference between air release valve and air relief valve?

The valve allows the rising liquid to force out air that occurs naturally in a piping system. ... Furthermore, a relief valve won't vent accumulated air at pressures below the set point. Unlike a pressure relief valve, an air release valve is open at atmospheric pressure, then closes automatically when liquid is present.

image-What is air vent valve?
image-What is air vent valve?
Related

Where do you put a air relief valve?

The air relief valve should be placed in an exhaust header or a line that runs perpendicular to the lateral rows at the furthest distance possible from the water source to ensure all rows of the dripline can take advantage of the air relief valve.

Related

What type of valve is an air release valve?

Air release valves are also referred to as small orifice valves due to their smaller orifice size in comparison to air/vacuum valves. They are typically connected to a compounded hinged float mechanism versus a simple float seat operation in the air/vacuum valves.19 jan. 2021

Related

Do automatic air vents fail?

Automatic air vents have another negative factor, as they rely on metal springs and rubber components which can wear out and fail. Since they are mechanical devices operating in a hostile environment, they are prone to failure.4 feb. 2015

Related

Can automatic air vents let air in?

Yes, there is a way, and we recommend against it! Read on. All of the Caleffi 5020/5021 Series MINICAL, 5022/5023 Series VALCAL and 551 Series DISCALAIR automatic vents have a spring-closed air release valve under the air vent cap.22 dec. 2016

Related

Should automatic exhaust vent be left open?

Auto air vents did most for you. When air free tighten up. When they are left open any nitrogen accumulating because of corrosion is vented away, giving the impression all is fine, especially in a vented system. If nitrogen is being produced it will make parts of the system cold which raises alarm bells.18 nov. 2005
