How do I know if my wire is 12 or 14 gauge?
Look at the insulation on the cable. Search for text written on the insulation. The last numbers in each string of text represent the AWG of the wire.
The larger the diameter of the wire, the smaller its gauge number will be. You can measure the gauge on either round solid wire (an individual wire with no insulation) or stranded wire (a number of strands wrapped together).
Which is stronger 12 gauge or 16 gauge steel?
A safe constructed of 3/16” (. 188) steel is about 5.6 times stronger than one constructed from 12-gauge (. 106) steel. A safe door made from 1/4” steel is 13.12 times stronger than one made from 12-gauge.
How do I know if my wire is 12 or 14 gauge?
How do you tell if your old wiring is 12-gauge or 14-gauge? Here's a simple visual. Twelve gauge is about the thickness of a nickel, and 14-gauge is about the thickness of a dime. Also, look at the breaker for the circuit in question to see if it's a 15-amp or a 20-amp breaker.Jul 31, 2018
How can I tell what gauge wire is not marked?

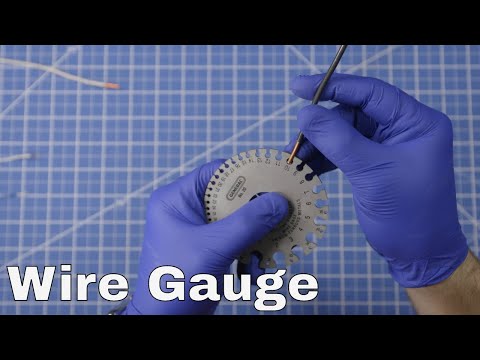

If you do not have a wire gauge tool, you can still find a wire's gauge by measuring it against another wire of known gauge size. For example, if you have a small-diameter section of wire, hold it next to wires of known gauge (e.g. 20, 21, and 22) to see which your segment matches.
What is the difference between 12 gauge and 14 gauge metal?
In the gauge system the higher the number the thinner the steel. As an example, 12 gauge steel is thicker and stronger than 14 gauge steel. ... The 14-gauge steel is the industry standard of frame thickness and the most nationally accepted gauge for carport and metal structures.Mar 9, 2017
Is 14 gauge wire always white?
The size of the wire is denoted by its gauge (in the US, at least): #14, for example. The color of the insulation is sometimes an indication of its purpose, although that's not always the case. Black is usually hot, white is usually neutral, red is switched-hot or traveller - but again, these are standards, not rules.
Is 16 or 14 gauge bigger?
16ga steel is . 065” inches thick, that is about 1/16th of an inch thick. 14 gauge in comparison is . 083 inches thick which doesn't sound like much except it is almost 30% thicker (27.6% to be exact).Jun 16, 2020
Which is bigger 12 or 14 gauge wire?
The diameter of 12 AWG wire is 0.0808 inches, while 14 AWG is 0.0641 inches. The thickness of 12 AWG wire is 26% more than the thickness of 14 AWG wire.
What color is 30amp wire?
Orange Sheathing
The orange-colored wire sheathing is set aside for 10-gauge wire. It is able to handle 30-amp circuit loads. These loads include air conditioners, water heater feeds, and any other 30-amp loads.Jun 9, 2021
Can I use 14 gauge wire for lights?
As long as you don't put too many lights on the light circuit, you can usually control that circuit with a 15-amp breaker, as well as wire it with a 14-gauge wire. On the other hand, an outlet circuit controlled by a 20-amp breaker requires a 12-gauge wire.
Related questions
Related
What is the difference between white Romex and yellow Romex?
There is a significant weight difference between the 14- and 12-gauge ROMEX®. White ROMEX® with two wires, 14-2, weighs 57 pounds for every 1,000 feet of wire. ... Compare this to the weight of yellow ROMEX® at 82 pounds. for 12-2 and 107 pounds for 12-3 wire.
Related
Which is bigger 12 gauge or 20 gauge wire?
The general rule of thumb is that the smaller the gauge number, the thicker the cable.
Related
How do you calculate electrical wire size?
- Amps = Watts divided by volts
- Feet = One-way wire distance
- % Volt Drop = Percentage of voltage drop acceptable for this circuit (typically 2% to 5%)
Related
What is the thickness of a wire gauge?
- The thickness of wire often is measured using a system called the American Wire Gauge (AWG) standard. The smaller the gauge number, the larger the diameter of the wire. For example, 18-gauge copper wire has a diameter of about 0.102 cm; 12-gauge copper wire has a diameter of about 0.205 cm.
Related
What is gauge in wire?
- Wire gauge is a measurement of wire diameter. This determines the amount of electric current a wire can safely carry, as well as its electrical resistance and weight.
Related
What is wire size?
- Wire is sized by the American Wire Gauge (AWG) system. Wire gauge refers the physical size of the wire, rated with a numerical designation that runs opposite to the diameter of the conductors—in other words, the smaller the wire gauge number, the larger the wire diameter. Common sizes include 14-, 12-, 10-, 8-, 6-, and 2-gauge wire.
Related
What are the different wire gauge sizes?What are the different wire gauge sizes?
On the American Wire Gauge (AWG) scale, gauge sizes run from 0000 (also written 4/0) to nearly 60. The larger the diameter of the wire, the smaller its gauge number will be.
Related
What is AWG wire gauge?What is AWG wire gauge?
American Wire Gauge (AWG) is a system of numerical wire sizes that start with the lowest numbers (6/0) for the largest sizes. The gauge sizes are each 26% apart based on the cross sectional area.
Related
How do I know what size wire I have?How do I know what size wire I have?
Once you find the right one, the number stamped by the hole on the wire stripper indicates the gauge size of the wire. If all you know however is the diameter of the wire, you can consult a reference manual, online or hardcopy, listing all electrical wires by AWG size and also by their use.
Related
How do you measure wire gauge without a Wire Gauge Tool?How do you measure wire gauge without a Wire Gauge Tool?
These holes are not used to measure gauge size. They’re simply on the tool to allow you to easily remove the wire from the grooves. Compare the wire against another wire whose gauge is known. If you do not have a wire gauge tool, you can still find a wire’s gauge by measuring it against another wire of known gauge size.
